Orchestrale Phonica
Orchestrale Phonica

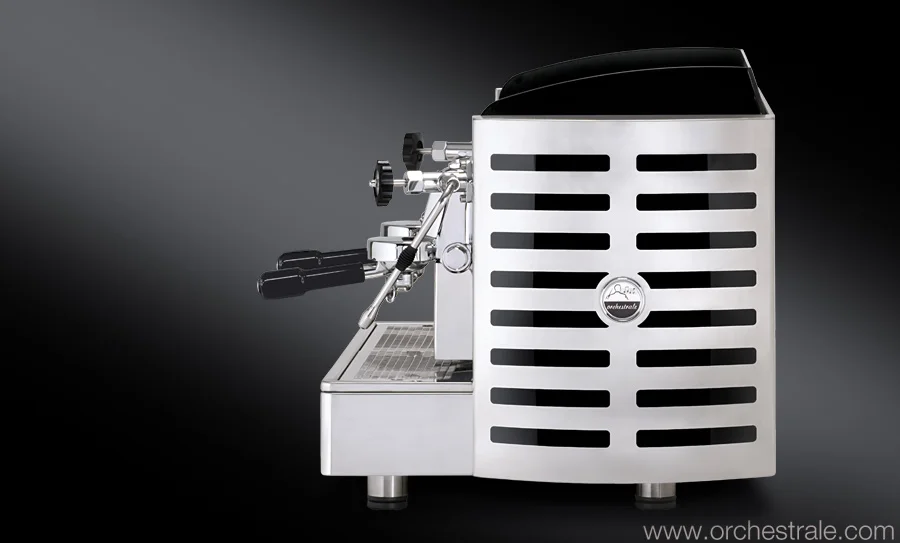

Phonica is a professional espresso machine, dedicated to Ray Charles' life, with its design, that recalls the shape of the microphones of an unforgettable epoch, Phonica wants to be a tribute to those big and unrepeatable voices of the XXth century, that will always remain in the history of music.
Phonica is a coffee and cappuccino machine available in the automatic and semiautomatic versions with normal and raised E61 groups (1 gr., 2 gr. compact, 2 gr., 3 gr.) available with programmable portion control(only the automatics), dual gauges for boiler and pump pressure control , boiler and pipes of copper, pipes fittings of brass, frame of pure polished and satined stainless steel AISI 304 finished of methalcrylate.
Phonica is also available with different colours frames …even with satin steel sides and back panel, or with steel painted white matt or black matt.
Moreover you can have it with different colour methacrylates: black, white, green, red, yellow, orange, blue and violet, silver mirror, gold mirror.
Find your favourite colour option into the gallery!!!
SHIPPING LEAD TIME VARIES UP TO 4 WEEKS
TECHNICAL FEATURES:
Automatic espresso coffee and cappuccino machine with programmable portion control
Thermosiphonic system
E 61 brewing groups
Frame of pure polished and satined stainless steel AISI 304. Finishing of black methacrylate
Boiler and pipes of copper and pipe ttings of brass
Dual gauges for boiler and pump pressure control
Manual and automatic water loading
Boiler tap for manual discharge
Built-in motor pumps (on demand: external motor pump)
Touchpad for each group with pilot lights for activated brewing buttons:
6 volumetric metering selections programmable from the touchpad directly and 1 programming button
1 electromechanical button for every group for brewing choose (only for 2 groups in the 3 gr. version)
Indicator to inform the machine and cup-warmer are ON
Lighted back panel with ON/OFF switch
Electric cup-warmer
Visual boiler water gauge
1 multidirectional stainless steel steam wand with manual control
2 multidirectional stainless steel steam wands with manual control
1 multidirectional stainless steel hot water wand
1 multidirectional stainless steel hot water wand with automatic control from the touchpad
OPTIONALS ON DEMAND
Electric cup-warmer
Mixed hot water outlet
Outside motor pump
Raised groups
Cappuccino maker / Milk frothing wand
Kit GAS
Counting systems
Serial interface for external connection
Foot pedal for steam wand
Technical and aesthetic customization (colour options on the website gallery)
TECHNICAL DATA
1 gr 2100 / 3100W 120 - 230 - 240 - 400 (1F-3F) V/ 50 - 60 Hz 7L 620x560x560mm 70kg
2 gr compact 2900W 120 - 230 - 240 - 400 (1F-3F) V/ 50 - 60 Hz 7L 620x560x560mm 78kg
2 gr 2500 / 3900W 120 - 230 - 240 - 400 (1F-3F) V/ 50 - 60 Hz 12L 830x560x560mm 84kg
3 gr 5560W 230 - 240 - 400 (1F-3F) V/ 50 - 60 Hz 17L 1060x560x560mm 100kg
